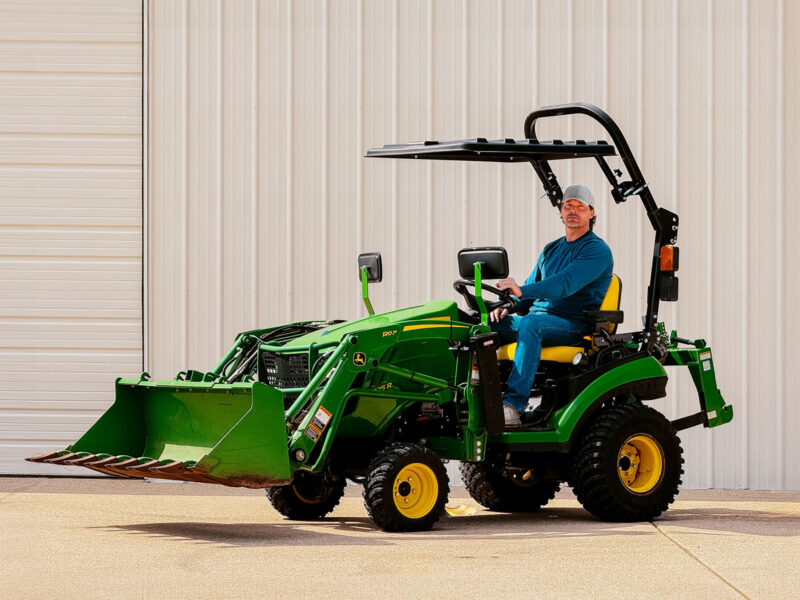

Rhinohide Canopy on John Deere 1025R

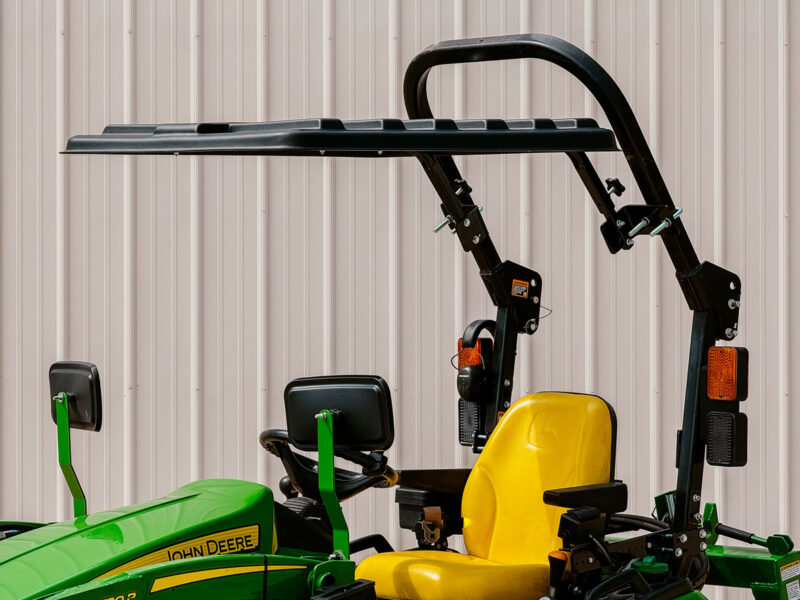

Angled View of Rhinohide Canopy on John Deere 1025R with Angled Roll Bar

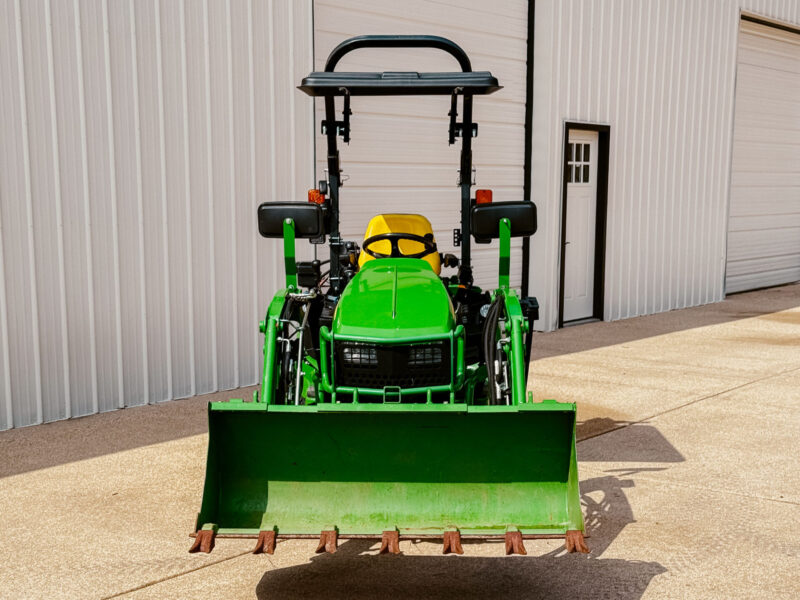

Front View of Rhinohide Canopy on John Deere 1025R with Angled Roll Bar

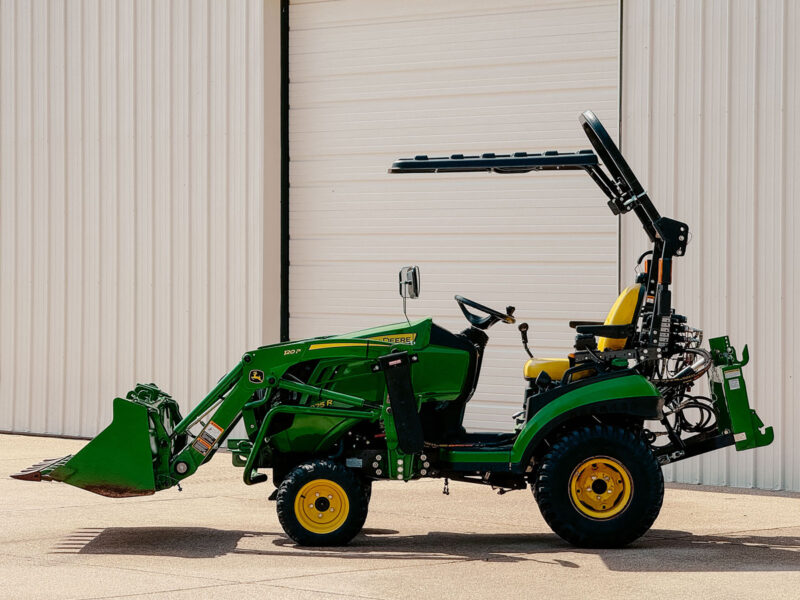

Side View of Rhinohide Canopy on John Deere 1025R with Angled Roll Bar

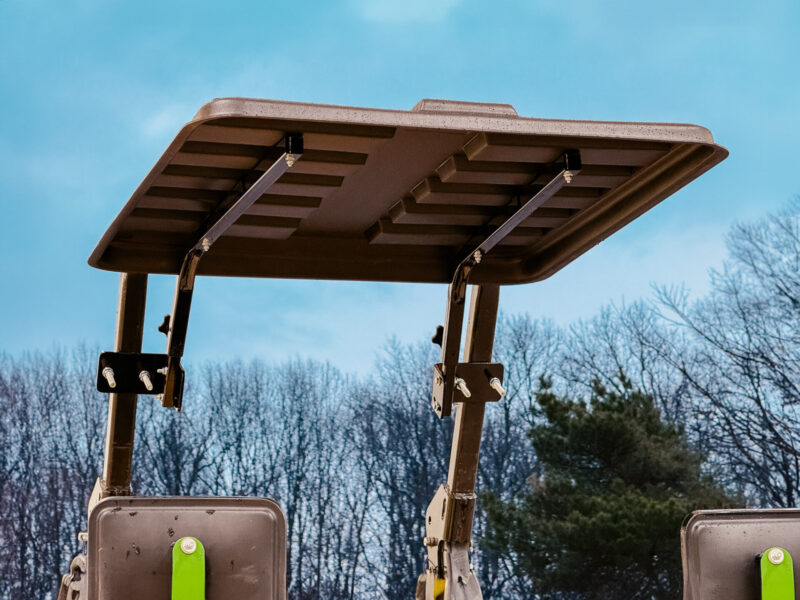

Canopy Support Arms Under Rhinohide Canopy

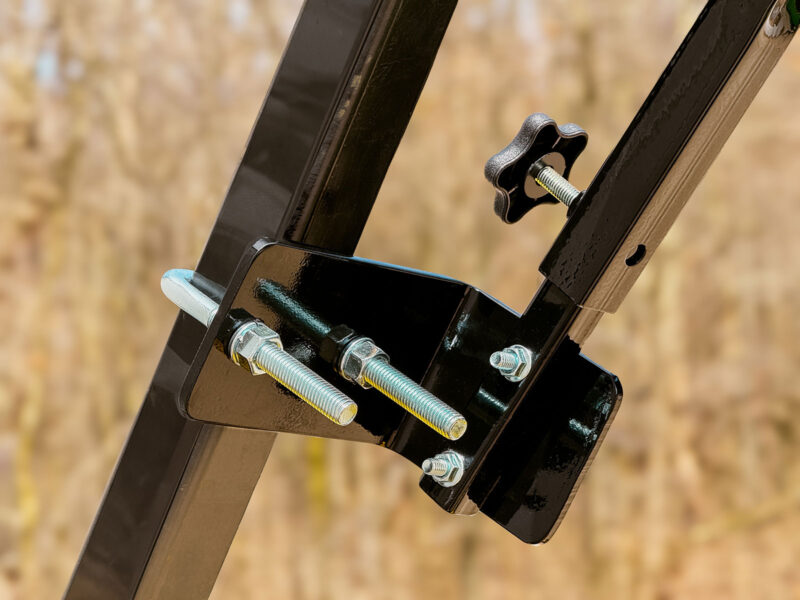

Rear View of Mounting Hardware on Angled Roll Bar

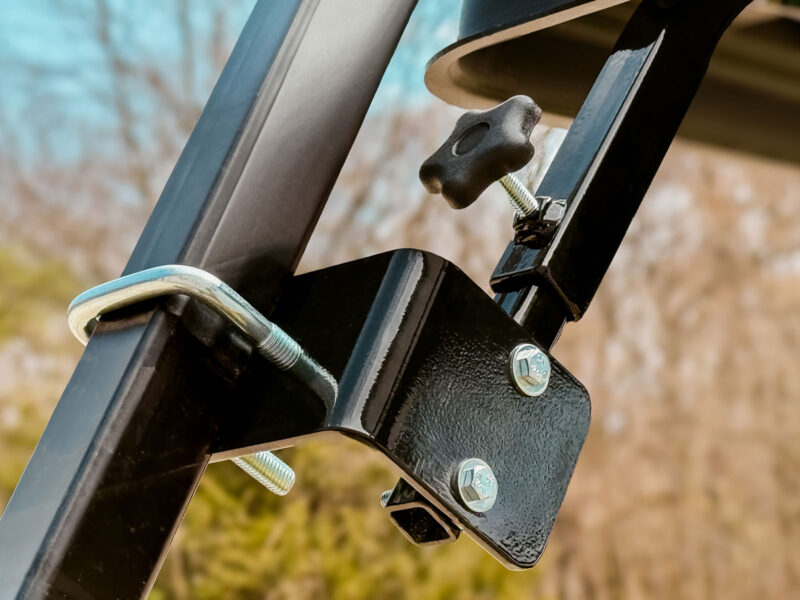

Mounting Hardware on Angled Roll Bar

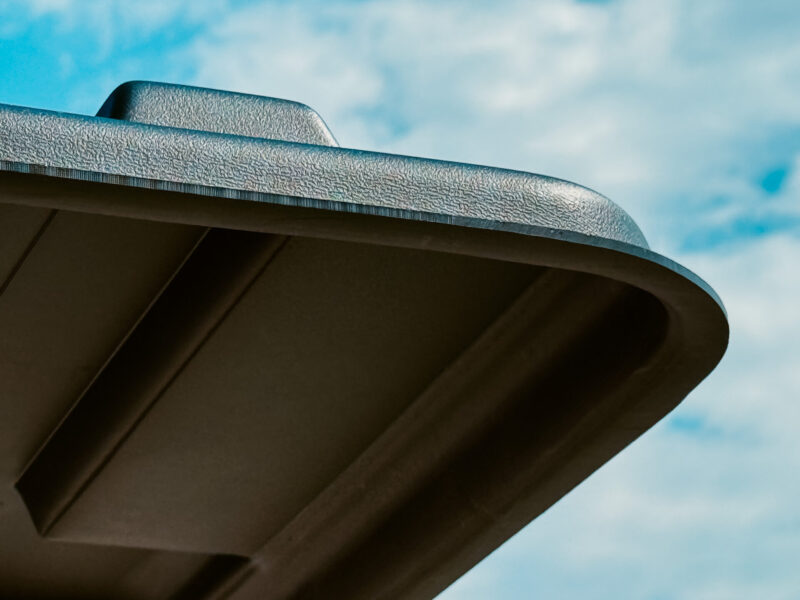

Under View Close-Up of Canopy
Rhinohide Canopy on John Deere 1025R
Angled View of Rhinohide Canopy on John Deere 1025R with Angled Roll Bar
Front View of Rhinohide Canopy on John Deere 1025R with Angled Roll Bar
Side View of Rhinohide Canopy on John Deere 1025R with Angled Roll Bar
Canopy Support Arms Under Rhinohide Canopy
Rear View of Mounting Hardware on Angled Roll Bar
Mounting Hardware on Angled Roll Bar
Under View Close-Up of Canopy

Canopy for John Deere 1025R and 2025R

$499.00

The Rhinohide Canopy is the best canopy for your John Deere 1025R, 2025R, and 1023E because it’s been designed for the unique roll bar that angles forward above the hinge.

If your John Deere 1025R, 2025R, or 1023E has straight ROPS, you should purchase our normal Rhinohide Canopy.

Rhinohide Canopy Highlights

  • Virtually Indestructible
  • Lightweight Shell weighs only 13 lb
  • Easily Removable
  • Can Mount Below Top Of Roll Bar
  • Strut Angle Matches Exact Angle of Roll Bar
  • Black UV Protected HDPE Shell Will Not Fade
  • 37×45″ (Canopy Shell Width x Length)
  • Universal Fit to any Rectangular ROPS
  • One Canopy Can Mount to Multiple Machines (w/ Multi Kit)
  • 1 Year Warranty
  • 100% Made in USA
  • Always in Stock
What Sets Us Apart?

Only the Rhinohide Canopy claims to be removable, lightweight, virtually indestructible, and can mount below the top of your roll bar. So get out of the sun and protect your skin under the shade of a Rhinohide Canopy.

Features

The Rhinohide Canopy is a universal canopy system designed for any tractor or mower with a Roll Over Protection System (ROPS), otherwise known as a roll bar.

True to its name, the Rhinohide Canopy is virtually unbreakable—made from a very high strength and lightweight plastic (HDPE). We have yet to hear of an encounter too strong for the canopy, yet at just 13 lb the shell is still lightweight enough for anyone to handle.

Remove your Rhinohide Canopy in just seconds with the twist of two hand screws. This is perfect if you need to remove the canopy for storage, trailering, low-clearance areas, or if you’re moving the canopy to the rear to cover your backhoe, or to another tractor or mower.

Our canopy is 37″ wide x 45″ deep. The closer you mount it to your head, the more shade it will provide. The best position for the canopy is about 15″ above your head when seated.

Note, these specific John Deere models with forward leaning roll bars push the mounting position of our canopy forward and reduce your rear shade coverage. Some customers mount above the roll bar, but we recommend against this as our canopy isn’t big enough to provide the best shade when mounted so high.

Others have notched their canopies have it sit further back between the roll bar. This makes removal much harder, but gives better shade on your back. Look at the photos to see where the back of the canopy sits in relation to the operator.

Multi Kit

The angle of the ROPS of these tractor models combined with the position of the backhoe seat on these models does not allow for a good solution for shade coverage while operating the backhoe. So don’t buy our backhoe/multi kit for your 1025 or 2025.

But, if you own a second machine with a roll bar that has a width within 4″ your John Deere’s roll bar, add the Backhoe/Multi Kit to your order and easily move your canopy from one machine to the other. Note you can compare the outside-to-outside width of the narrower roll bar to the inside-to-inside width of the wider roll bar.

Ordering

We’ve created kits for the John Deere 1023E, 1025R, and 2025R. So just select your model and you’ll be good to go.

Install your canopy in less than an hour. For instructions on how to attach your canopy, watch this video or read our instruction guide here.

*Our hardware fits any of the following John Deere models based on the following dimensions:

1023E & 1025R
Outside-to-outside span: 31 1/2″
Tube Steel: 2×2″

2025R 2″ ROPS (early models)
Outside-to-outside span: 31 1/2″
Tube Steel: 2×2″

2025R 2 3/8″ ROPS (late models)
Outside-to-outside span: 32 1/8″
Tube Steel: 2 3/8″ x 2 3/8″

Virtually Indestructible
True to its name, the Rhinohide Canopy is tough—virtually unbreakable even. Made from a very high strength and lightweight plastic called High-Density Polyethylene (HDPE), the canopy is capable of deflecting to a great extent when stressed. The combination of our material and shape create a canopy so tough, we haven’t had to replace a single one since founding.

Plastic Is Better Than Metal
Compared to a painted canopy, scratches are barely visible on a Rhinohide, as the plastic is black all the way through. Compared to canopies made from other type of plastic, like ABS, the Rhinohide isn’t prone to breaking or shattering. Compared to a metal canopy, the Rhinohide rarely dents and won’t rust when scratched. And it’s much, much lighter. And our dye is UV resistant, so your canopy will not fade over time.

Lightweight
The Rhinohide shell weighs just 13 lb, lightweight enough for anyone to handle. This is helpful for installation, as well as for removing the canopy for trailering or storage.

Removable
All models of the Rhinohide are removable, easy on and easy off. Quickly loosen two hand screws and slide the canopy off its risers.

Fits Under Garage Doors!
Unlike other canopies, you can choose to mount the Rhinohide below the top of the roll bar, preserving the height and clearance of your tractor if you have low garage doors or low limbs on your property.

  • Shipping is free!
    • We ship only within the continental USA
    • All orders are shipped via UPS Ground
  • A tracking number will be emailed to you automatically
  • Orders typically ship the next business day
  • Orders are returnable within 60 days from receipt, if the product is unused
Canopy Shell
Width x Length: 37 x 45 in
Weighs: 13 lb
Black, HDPE Plastic
Support Structure
Powder Coated Steel
Zinc Coated Hardware
Shipping Container
Width x Length x Height: 45 x 38 x 4 inches
Shipping Weight: 34 lb

Since our founding, we’re happy to say we’ve never had to replace a canopy. Ever.

Still, we offer a Lifetime Warranty with every purchase that’s simple to understand—if your canopy ever fails for any fault of ours, we’ll replace the necessary parts at no cost to you.

It doesn’t matter if your tractor is from John Deere, Kubota, Kioti, Mahindra, Massey, LS, Yanmar, TYM, Bobcat, New Holland, Bad Boy, Summit or any other manufacturer!

We have hardware to fit 100% of roll bars out there. The standard hardware on our Universal Tractor Canopy fits 90% of tractor roll bars. To be sure you don’t need special hardware, it’s best to verify four things.

  • A. If your roll bar is made from tube steel wider than 2.5 inches, choose that option.
  • B. If your roll bar is made from tube steel deeper than 4 inches, choose that option.
  • C. If your roll bar is wider than 42 inches (outside-to-outside), choose that option.
  • If your roll bar angles forward greater than 15 degrees, shop our Canopy for Angled Roll Bars.
Roll Bar Critical Dimensions for Rhinohide Canopy

Backhoe Kit
If your tractor has a backhoe, you may consider adding our Backhoe Kit.* This kit includes an additional set of mounting hardware that you attach above or below your first set. Then you can swap your canopy from forward facing to rear facing.

*The Backhoe Kit cannot be used if you’re mounting to an angled roll bar.

Multi-Kit
If you own a second machine (like a zero turn mower) with a roll bar that has a width within 6″ of your tractor’s roll bar, add the Multi-Kit to your order to easily swap your canopy from one machine to the other, instead of buying two complete canopy kits.

There are some considerations for the Multi-Kit. You will fix the support arms to the canopy, so they will have a fixed dimension that needs to align to both roll bars.** You will likely need to make up some distance between the two machines with your own bushings/spacers/washers.

*You can compare the outside width of the narrower roll bar to the inside width of the wider roll bar.

Every single component of a Rhinohide Canopy is designed, fabricated, and packed in the USA.

We source American steel, American hardware, and American labor. Even the box we ship it in is in Made in America.

There isn’t anything wrong with a global economy. We just take pride in keeping our footprint small and in communities we know.

Install your canopy in about 45 minutes.

The easiest way to understand how to install your Rhinohide Canopy is by watching us install one first.

Even if your tractor or mower is different, the installation will be almost exactly the same.

We think the best position for our canopy is about 10″ above your head when seated. On tractors this often means mounting in front of and below the top of your roll bar. On zero turn mowers, this will always be above the roll bar.

Depending on the position of your seat and roll bar, as well as the shape of your roll bar, this lower position may not allow for much coverage behind your head. But it may provide more shade than mounting the canopy above your roll bar.

View our printed installation instructions here.

Easily Removable

Designed To Be Removed in 10 Seconds

Whether you have low clearance on your property, low clearance in your barn or garage, or you need to trailer your machine, the Rhinohide Canopy is designed to be easily removed.

Virtually Indestructible

Plastic Is Better Than Metal,
Our Plastic Anyway

The Rhinohide Canopy is made from HDPE plastic, and its combination of strength and flexibility creates a canopy that can take a beating. There is no paint to scratch off, no steel to dent, and no weak plastic to easily crack or shatter (and don’t get us started on fabric canopies or umbrellas).

Our canopy will outlast ABS and Fiberglass canopies, and look better than metal in the long run.

Truly Universal

The Rhinohide Canopy Fits All Tractors & Mowers

If your tractor or mower has a roll bar, the Rhinohide Canopy is compatible.

You decide on the placement that works best for you—above the roll bar or in front and below, to keep your clearance low.

Will the Rhinohide Canopy
fit my roll bar?

Yes we will.

Our standard hardware fits 98% of tractors we sell to.
And we have hardware to fit the rest, too.

(Read on →)

Roll Bar Critical Dimensions for Rhinohide Canopy

It’s as easy as ABC

Verify these three measurements to ensure you get the right hardware the first time.

A: Measure the outside-to-outside width of your roll bar.
If it’s greater than 42 inches, select that option above.

B: Measure the width of your roll bar’s tube steel.
If it’s wider than 2 1/2 inches, select that option above.

C: Measure the depth of your roll bar’s tube steel.
If it’s deeper than 4 inches, select that option above.

But my roll bar isn’t straight…

Can I still use a Rhinohide Canopy?

Yes. We have designed two support arms that work for all roll bars.

(Read on →)

Standard Roll Bar Angle Allowance Diagram

This is what we consider a Standard Roll Bar.

The vast majority of tractor models (95%+) have a roll bar that doesn’t lean forward or backwards more than 15°. We consider anything in this range a Standard Roll Bar, and it fits our standard hardware in the Universal Tractor Canopy.

All zero turn roll bars also classify as Standard, for our purposes, so the Universal Mower Canopy fits all zero turn mowers.

(Read on →)

Angled Roll Bar Diagram

This is what we consider an Angled Roll Bar.

We designed a support arm to match the angle of the roll bar on the John Deere 1025R and 2025R.

That same support arm works for angled roll bars from TYM, Rural King, Bobcat, Bad Boy, Mahindra, and Branson.

If your roll bar looks like this, be sure to order our Canopy for Angled Roll Bars.

Rhinohide Canopy Profile

The Rhinohide Lifetime Warranty

We haven’t had to replace a canopy yet, and we don’t expect you to be the first.

Our Lifetime Warranty is simple—if anything goes wrong because of something we did, contact us.

We’ll make it right.

Our Lifetime Warranty is simple—if anything goes wrong because of something we did, contact us.

We’ll make it right.
