Extended 19" Risers, Mounted Below Hinge
Extended 19" Risers, Mounted Below Hinge
Extended 19" Risers, Mounted Below Hinge
Extended 19" Risers, Mounted Below Hinge
Extended 19" Risers, Mounted Below Hinge
Extended 19" Risers, Mounted Below Hinge

Universal Tractor Canopy with 19″ Risers

$499

Limited Time Option -$35

Save money buying a shell that didn't meet our quality standards. It has the same resilience as our factory firsts (and the same warranty), but shows an uneven trim or an excessive bow.

Total: $499

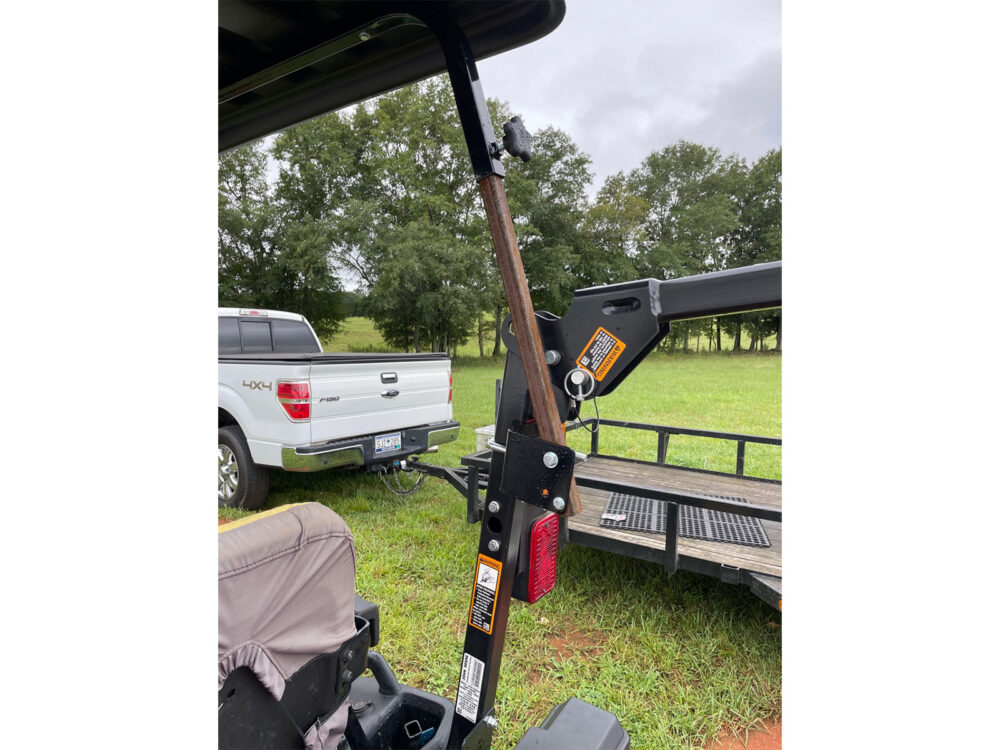

Use our 19 inch risers to mount your canopy below your roll bar’s hinge, but still get it high enough to stay clear of your head!

Our standard risers are 11 inches, so you gain an extra 8 inches with this kit.

*Risers in photos are not painted or powder coated. Parts will be shipped to your powder coated black to match the rest of our kit.

It doesn’t matter if your tractor is from John Deere, Kubota, Kioti, Mahindra, Massey, LS, Yanmar, TYM, Bobcat, New Holland, Bad Boy, Summit or any other manufacturer!

We have hardware to fit 100% of roll bars out there. The standard hardware on our Universal Tractor Canopy fits 90% of tractor roll bars. To be sure you don’t need special hardware, it’s best to verify four things.

  • A) If your roll bar is wider than 42 inches (outside-to-outside), choose that option.
  • B) If your roll bar is made from tube steel wider than 2.5 inches, choose that option.
  • C) If your roll bar is made from tube steel deeper than 4 inches, choose that option.
  • If your roll bar angles forward greater than 15 degrees, shop our Canopy for Angled Roll Bars.
Roll Bar Critical Dimensions for Rhinohide Canopy

The Rhinohide is pretty straightforward. Still we have a few things worth considering:

Backhoe Kit
If you use a backhoe, add a second set of mounting hardware to move your canopy from the front to the back. Not compatible with angled roll bar.

Multi-Kit
If have two machines with roll bars, you maybe able to buy one canopy and two mounting kits to swap the canopy from one machine to the other. Read below for more information about the Multi-Kit compatibility.

Grab Handles
Increase or decrease your grip stance with our grab handles. These slip over the canopy support arms and set in place anywhere you’d like with two set screws.

5 ways our canopy beats the competition

We fit every tractor & mower

If your tractor or mower has a roll bar, you can use a Rhinohide Canopy.

Straight or angled.
Square, rectangular, or round.
Our standard hardware fits 95% of roll bars, and we have parts to fit the remaining 5%.

Unbreakable (Almost)

The Rhinohide Canopy is made from a very high-strength, lightweight plastic called HDPE.

Our shell absorbs impact when other plastics (or even metal) would crack, shatter, or dent.

There is no paint to peel or scratch off, and no rust either. Scratches are barely visible since our canopy is black all the way through.

Easy on, easy off

Need to drive in the woods?
Get under a low door?
Trailer your machine?

Remove your canopy in 10 seconds by loosening the two hand screws, and sliding off your canopy.

*Add our Grab Handles if you want to widen or narrow your grip stance.

Mount above or below

Traditional canopies only mount above the roll bar. But the Rhinohide can mount above or below, depending on your preference.

Our standard hardware supports either mounting location.

Made in the Heart of the USA

The shell, the steel, fabrication and powder coating, the hardware, and even the box it ships in.

From start to finish, a Rhinohide Canopy is completely made in the heart of America—Kansas.

Frequently Asked Questions

The most commonly asked questions are answered here.For even more questions, visit our full FAQ page.

The Rhinohide Canopy mounts to the roll bar of a tractor or mower, and we haven’t found a roll bar that we don’t fit.

But to know if you can use our standard hardware or need our pieces for larger sizes, please confirm the following two dimensions.

  1. Roll Bar Tube Steel Depth
    • Our standard U-bolt fits tube steel up to 4 inches deep.
      If your roll bar is deeper than 4 inches, please select “Roll Bar Deeper than 4 inches” up above.
  2. Roll Bar Overall Width
    • Our standard L-Brackets fit roll bars up to 42 inches wide, measured outside-to-outside.
      If your roll bar is wider than this, please select “Roll Bar Wider Than 42 inches” up above.

*If your roll bar tube steel is wider than 2.5″, email or call me. We can make parts to fit.

Canopy Shell

Size: 37 x 45 x 2.5 in (W x L x H)
Weight: 13 lb
Color: Black
Material: HDPE Plastic

Support Structure

Mounting Supports: Black, Powder Coated Steel
Hardware: Zinc Coated Steel

Shipping Box

45 x 38 x 4 inches (W x L x H)
Shipping Weight: 34 lb

Shipping

  • Shipping is included in the price of your canopy
  • Orders ship the next business day (exceptions apply)
  • All products ship UPS Ground
  • You will be emailed a tracking number once we print your shipping label

Returns

  • You can return your canopy within 90 days of purchase
    • All materials must be in as-new condition
    • Customers are responsible for return costs
      • We can provide a return label, but the cost will be deducted from your return
  • Please contact us if you wish to return your canopy

One person can install a Rhinohide Canopy in about 30–40 minutes.

Installation requires the following tools:

  • 3/4″ Socket or Open Wrench
  • (2) 1/2″ Sockets or Open Wrenches
  • 3/8″ Drill (Drilling Thru Plastic Shell Only)
  • Tape Measure
  • White Wax Pencil (optional)

Will the Rhinohide Canopy
fit my roll bar?

Yes we will.

Our standard hardware fits 98% of tractors we sell to.
And we have hardware to fit the rest, too.

(Read on →)

Roll Bar Critical Dimensions for Rhinohide Canopy

It’s easy!

Verify these three measurements to ensure you get the right hardware the first time.

A: Measure the outside-to-outside width of your roll bar.
If it’s greater than 42 inches, select that option above.

B: Measure the width of your roll bar’s tube steel.
If it’s wider than 2 1/2 inches, email or call me. We’ll make parts to fit.

C: Measure the depth of your roll bar’s tube steel.
If it’s deeper than 4 inches, select that option above.

But my roll bar isn’t straight…

Can I still use a Rhinohide Canopy?

Yes. We have designed two support arms that work for all roll bars.

(Read on →)

Standard Roll Bar Angle Allowance Diagram

This is what we consider a Standard Roll Bar.

The vast majority of tractor models (95%+) have a roll bar that doesn’t lean forward or backwards more than 15°. We consider anything in this range a Standard Roll Bar, and it fits our standard hardware in the Universal Tractor Canopy.

All zero turn roll bars also classify as Standard, for our purposes, so the Universal Mower Canopy fits all zero turn mowers.

(Read on →)

Angled Roll Bar Diagram

This is what we consider an Angled Roll Bar.

We designed a support arm to match the angle of the roll bar on the John Deere 1025R and 2025R.

That same support arm works for angled roll bars from TYM, Rural King, Bobcat, Bad Boy, Mahindra, and Branson.

If your roll bar looks like this, be sure to order our Canopy for Angled Roll Bars.

Improve your grip with Grab Handles

Our handles are angled at 45° allowing you to increase or decrease your grip stance.

The handles are sold as a pair and slide over the support arms to any desired position.

Rhinohide Canopy Shell Top View
Rhinohide Canopy Side Profile

We back our canopy for life.

We haven’t had to replace a canopy yet,

and we don’t expect you to be the first.

Each canopy comes with our simple-to-understand Lifetime Warranty—if anything goes wrong because of something we did, contact us.

We’ll make it right.

Our Lifetime Warranty is simple—if anything goes wrong because of something we did, contact us.

We’ll make it right.
