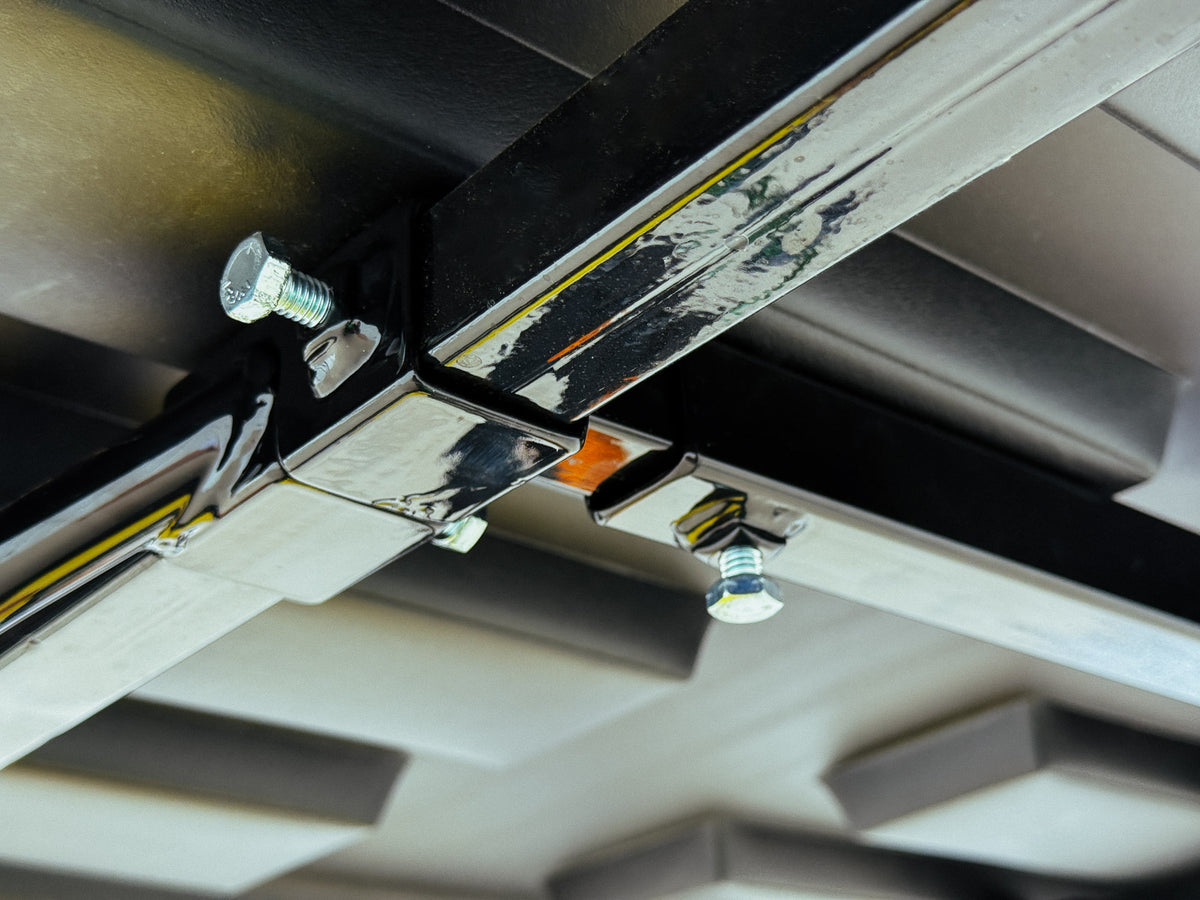

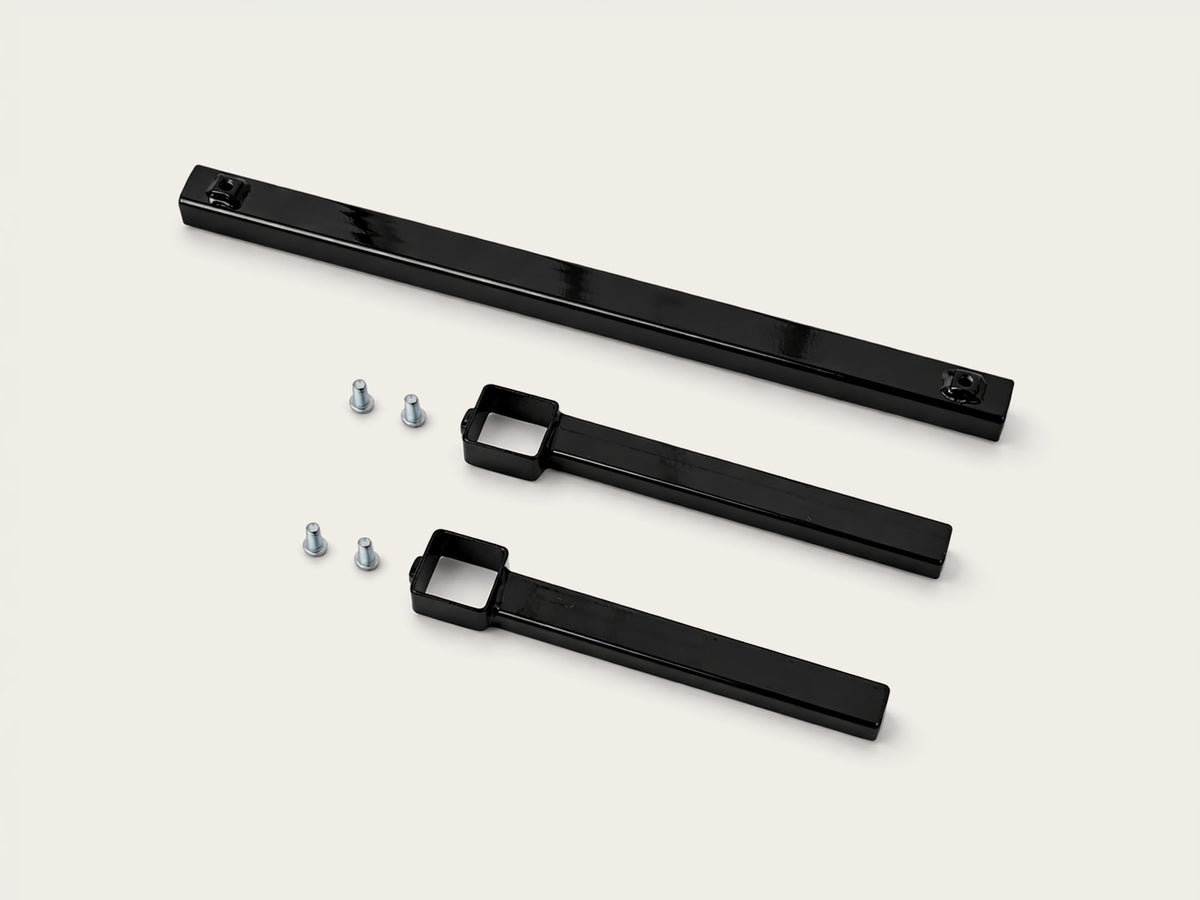

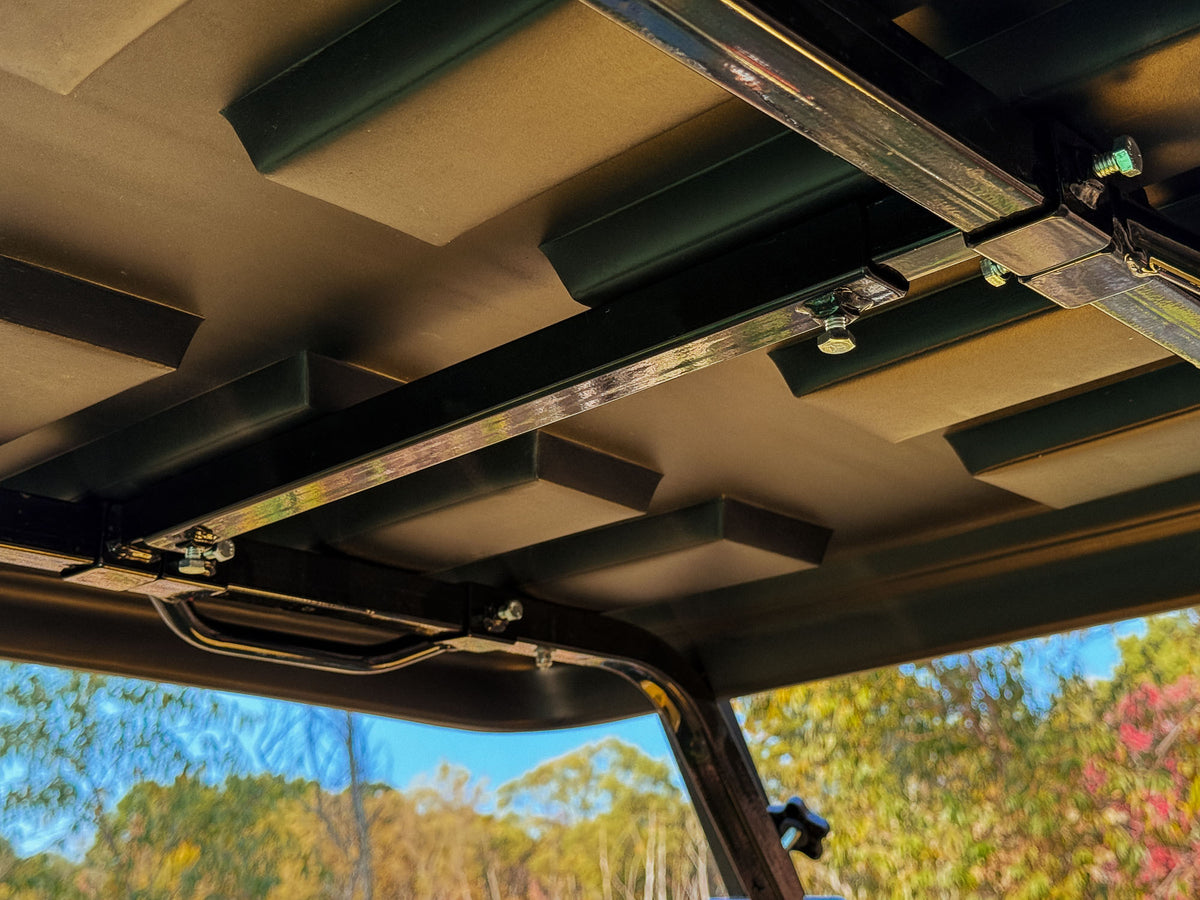

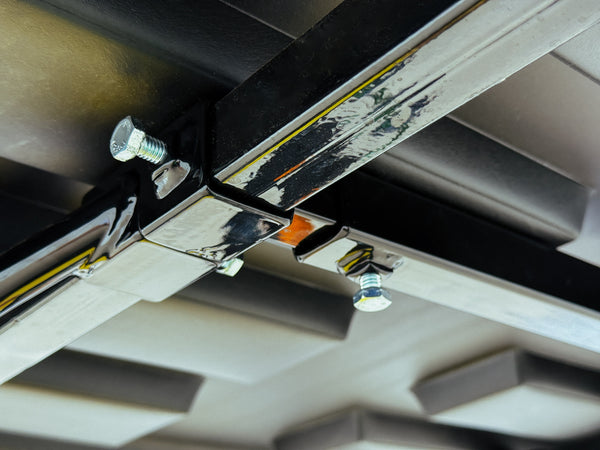

Accessory Bar

The Rhinohide Canopy Fits Every Roll Bar We've Ever Tested

The Rhinohide Canopy mounts to virtually any tractor or mower roll bar (ROPS), regardless of brand or shape. Square, rectangular, or round tubing. Straight or angled. Trapezoidal or bowtie—we have mounting options for them all.

If your model and roll bar configuration are listed, we’ve already identified the hardware you need. Select the matching option when ordering—no measuring required.

If your model isn’t listed, follow our measuring guide or contact us before ordering. When we encounter an unfamiliar roll bar, we work with you to find a mounting solution. Recently, we had U-bolts and L-Brackets made to fit the 3-inch round tubing on a customer’s John Deere Fairway Mower.

Everything you need to mount your Rhinohide Canopy is included in a Universal kit.

Included

• Rhinohide Canopy Shell (37 × 45 in)
• Universal Mounting System*
• (2) Support Arms
• (2) L-Brackets
• (2) 11" Risers
• (2) 2½" U-Bolts
• (2) Hand Screws
• All required nuts, bolts, and washers

Canopy Specs

• Weight: 13 lb
• Material: 3/16" High-Strength Thermoformed HDPE

Shipping

• Package: 45 × 38 × 4 in
• Shipping Weight: 34 lb

*Universal mounting components are powder-coated steel with zinc-coated hardware.

We make buying a Rhinohide Canopy simple:

• Free Shipping within the continental USA
• Ships Next Business Day via UPS Ground
• Tracking Included automatically by email
• Free Returns on unused products

Sorry to our Canadian and international friends. We do not ship across the border.

Installing your Rhinohide Canopy

Rhinohide Canopies install with simple hand tools and typically take about 40 minutes the first time.

Tools You'll Need

• Box knife for packaging
• 3/4" deep well socket, open-end wrench, or ratcheting wrench
• (2) 1/2" open-end or box wrenches

• Drill with a 3/8" bit
• Tape Measure
• Marker or wax pencil
• A friend (this always makes things go faster!)

The Basic Process

First, decide where you want your canopy positioned—above the roll bar or in front of it.

The mounting hardware assembles with nuts and bolts, so you can fine-tune the canopy position during installation.

The only drilling required is through the plastic shell to attach the support arms.

Install your canopy while on relatively level ground.

See our step-by-step installation manual for complete instructions.

See Installation Manual
