Rhinohide

Universal Tractor Canopy

$549.00
$549.00
Sale Sold out
Free shipping

The Rhinohide Universal Tractor Canopy provides shade for virtually any tractor equipped with a roll bar (ROPS). Its flexible HDPE shell absorbs impacts that dent steel or crack fiberglass, and you can mount it above or below the roll bar to suit your preferred height and clearance. Made in the USA and backed by our Lifetime Warranty.

  • Universal fit for all mower roll bars
  • Virtually indestructible, proprietary HDPE shell flexes on impact
  • Lightweight shell weighs just 13 lb
  • Removes in 10 seconds
Option: Universal Tractor Canopy
Color: Black
Uncommon roll bar dimensions

  • Lifetime Warranty
  • Unlimited Returns
Universal Tractor Canopy
Universal Tractor Canopy
$549.00
$549.00

Why choose Rhinohide

Virtually indestructible.

We put it through torture tests far beyond what a canopy should encounter. And it endured.

Try this with other canopies. We'll watch.

Mount above or below your roll bar.

Add shade without adding height to your tractor. Mount the canopy below the top of your roll bar to preserve clearance beneath an existing garage door, or mount it above for more headroom. The same hardware allows either position.

Remove it in seconds.

Loosen two hand screws and slide the canopy off. The roll-bar mounts stay in place, ready when you want the canopy back on.

Universal tractor canopy

Tractor shade.
Quick removal.

A flexible HDPE shell on a steel mounting system. Choose your mounting height, then slide the canopy off when you need the clearance.

Your roll bar’s dimensions and angle determine the hardware you need. Start with the fit guide below.

Rhinohide canopy mounted on a Kubota tractor
Above- and below-roll-bar mounting options for tractors.
37 × 45″

Shell width × length

13 lb

Shell weight
Complete assembly: about 23 lb

10–15 sec

To remove after installation

USA

Made in the USA

01 / Compatibility

We’ve fit every roll bar we’ve tried.

Check your roll bar.
Choose your hardware.

If your tractor model is already listed on our site, we’ve done the measuring for you. For an unlisted model, use these limits or ask us to confirm fit.

Get help confirming your fit ↗

Standard hardware fit

Overall roll-bar width
41″ or less
Tubing width
Up to 2½″
Tubing depth
Up to 4″

Measure the outside width of the roll bar, plus the width and depth of its tubing.

Outside those dimensions?

Check the Uncommon roll bar dimensions above. Need an option you don’t see, contact us before ordering.

Check your roll bar

The angle

For below-bar mounting on a tractor roll bar that leans forward more than 15°, choose the canopy for angled roll bars. Above the roll bar can always use the Universal Kit. As can below-bar mounting on a non-angled roll bar.

The tubing

Square, rectangular, and round tubing can be accommodated. Round tubing or unusual dimensions requires different hardware, selectable before adding to cart.

Your mounting position

Tractors can use above- or below-bar mounting. Zero-turn mowers generally need the canopy above the roll bar for sufficient headroom.

02 / Material

HDPE that flexes
on impact.

Steel can dent. Fiberglass can crack. Rhinohide’s thermoformed HDPE shell flexes under stress.

The 3/16″ shell combines a rigid shape with a flexible material. Its color runs through the plastic, so there’s no paint layer to scratch off. The shell is UV stabilized for use outdoors.

Powder-coated steel mounting components. Zinc-coated hardware. Made in the USA.

Rhinohide canopy shell color options

Light enough to remove

The shell and attached support arms slide off together; the mounting uprights stay on your tractor.

Color throughout the shell

Unlike a painted canopy, the color runs through the plastic. Choose your shell color when ordering.

03 / Height and removal

Mount above or below.
Slide off when needed.

01

Choose your height

A below-roll-bar installation can preserve your tractor’s existing height. Mount above for more headroom. Most customers mount below on a tractor.

02

Leave room to operate

About 10″ above your head while seated is a useful starting point. Lower mounting gives more shade; leave room to enter, exit, and operate comfortably. But it limits shade to your backside.

03

Loosen two hand screws

Slide the canopy and attached arms off the mounting uprights. The roll-bar hardware stays in place, ready for reinstallation. Consider our Grab Handles if you plan to do this a lot.

Before trailering: always remove the canopy before transporting your tractor or mower on a trailer.

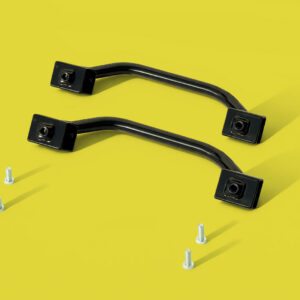

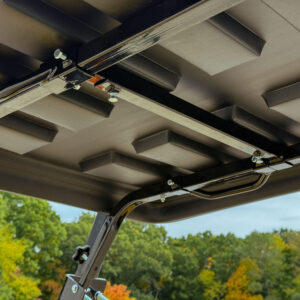

Grab Handles

Removing your canopy often?

Consider our Grab Handles.

View Grab Handles ↗

04 / Kit and installation

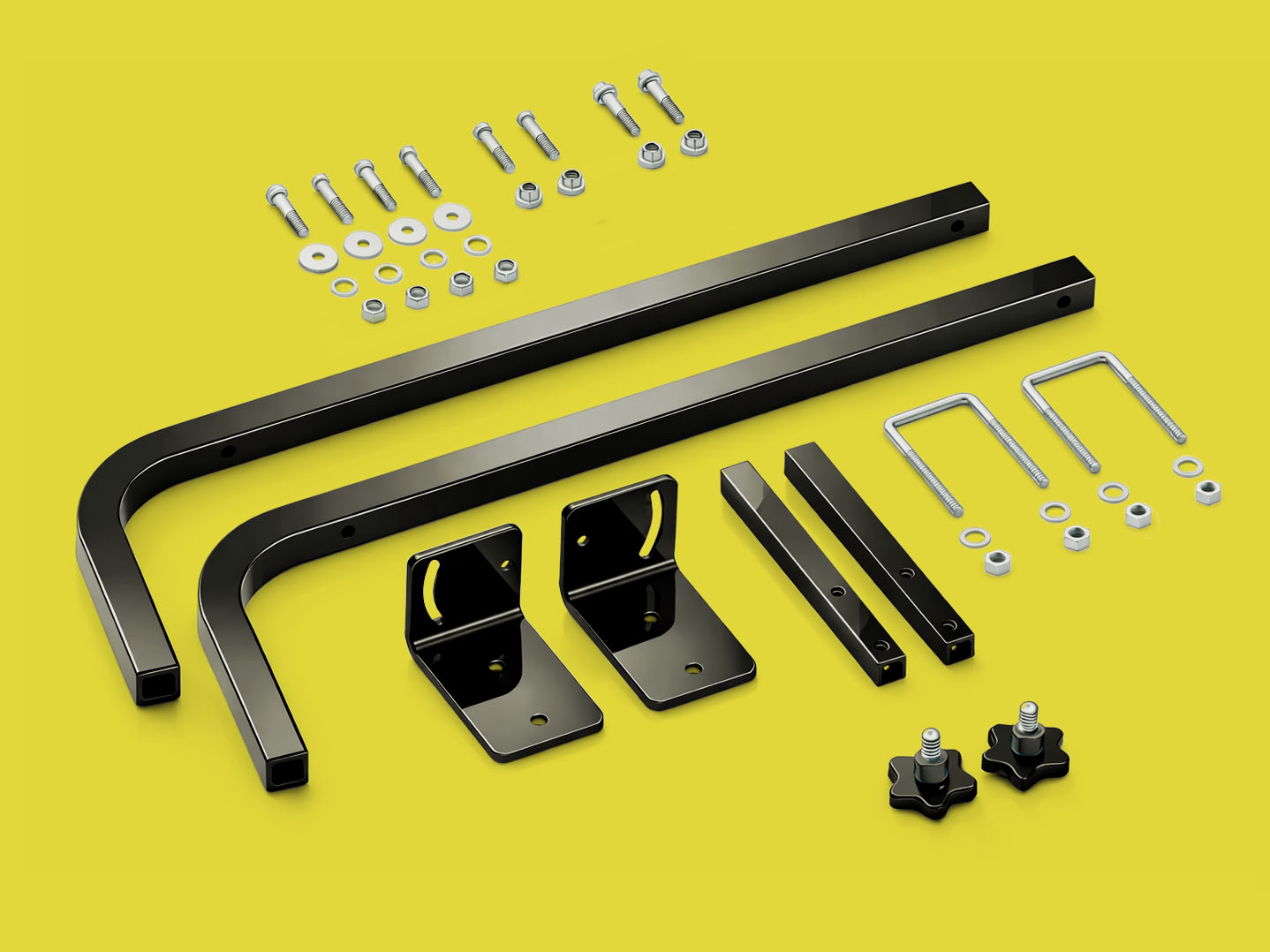

Universal canopy mounting kit with support arms, brackets, risers, U-bolts and fasteners
Standard Universal hardware shown. Alternate hardware depends on your roll bar.

Mounting kit included.

U-bolts clamp the brackets to the roll bar. You drill mounting holes through the plastic shell only.

In the standard Universal kit

  • 37 × 45″ canopy shell
  • Two support arms and two L-brackets
  • Two 11″ risers and two 2½″ U-bolts
  • Two hand screws and required fasteners

Allow 30–45 minutes

Plan on about 45 minutes for a first-time installation by one person. Review the installation guide before starting.

Use common tools

Wrenches, sockets, a drill, and a tape measure are all you'll need.

Keep the roll bar intact

Attach the brackets with the supplied clamps. Do not drill or modify your roll bar.

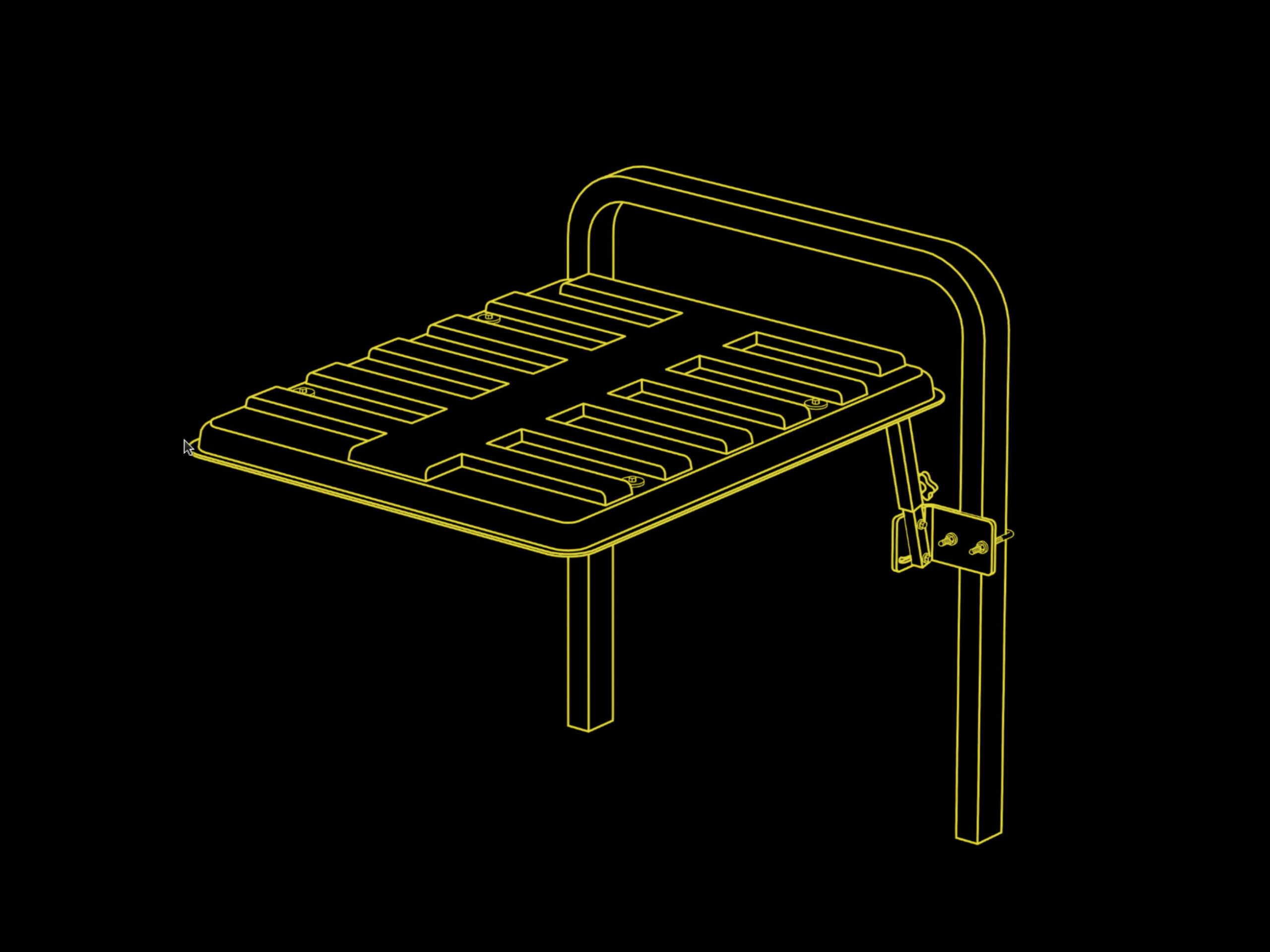

Rhinohide Canopy Assembly Sequence

See installation ↗

05 / Warranty and support

Lifetime Warranty
included.

In our complete history we have never had to replace a canopy shell.

But, if a fault on our part ever causes a failure, contact us. We’ll replace the necessary parts at no cost to you.

Contact Rhinohide

Get protection from all sides.

Add Lifetime Canopy Accident Protection and go beyond the included warranty for when you (or the person you lend your tractor to) hangs up your machine on a guy wire (we get calls on this a few times a year).

Read accident protection coverage ↗

Shipping and returns

Free shipping. We ship the next business day via UPS Ground.

See the shipping policy and return policy for full details.

Accessories and setup

Hanging a fan or mirror?

Add accessories to your canopy order and save 20%.

Choose your add-ons in the canopy options above ↑
Prices below are for accessories purchased separately.

Canopy questions.

Need help choosing hardware for your machine? Send us your model, roll-bar measurements, and a photo.

Get a fit check ↗
What should I measure before ordering?

Start with your tractor’s roll bar (ROPS)—the canopy requires one to mount. Measure its outside-to-outside width and the width and depth of its tubing, then check its angle. Standard hardware fits bars up to 41″ wide with tubing up to 2½″ wide and 4″ deep. Bars wider than 41″ need extended L-brackets. Select the applicable options above, or send us your measurements for help.

What if my tractor is older or my model isn’t listed?

Shop by your roll bar’s dimensions and angle rather than the tractor’s age or model. An unlisted model does not mean it won’t fit. Send us the make, model, measurements, and a photo if you’d like us to confirm the hardware before you order.

Do angled roll bars need a different canopy?

For mounting below a roll bar that leans forward more than 15°, choose the canopy for angled roll bars. Above-bar mounting can use the Universal Kit, as can below-bar mounting on a non-angled bar. In each case, check the overall width and tubing dimensions to select the right hardware.

Will my tractor still fit through my garage door?

Mounting below the top of the roll bar can preserve your tractor’s existing height. Check the completed installation against your doorway clearance. If you need more clearance, loosen the two hand screws and slide the canopy off; the roll-bar mounts stay in place.

Do I have to drill into my roll bar?

No. U-bolts clamp the brackets to the roll bar. You drill mounting holes through the plastic canopy shell only. Allow about 45 minutes for a first-time installation and review the installation guide before starting.

Can I leave the canopy on while trailering my tractor?

No. Always remove the canopy before transporting your tractor or mower on a trailer. Loosen the two hand screws and slide the canopy and attached support arms off the mounting uprights.

What does the Lifetime Warranty cover?

If a fault on our part causes a failure, we’ll replace the necessary parts at no cost to you. Contact us with details of the issue. Optional Lifetime Canopy Accident Protection provides separate coverage beyond the included warranty.

Can I share one canopy between two machines?

Yes, with compatible mounting positions and the Canopy Swap Kit. It adds mounts to your second machine so the same canopy and attached arms can move between them. The kit is for standard roll bars only. Contact us with both machines’ measurements before ordering.

Can it cover my backhoe seat?

The Backhoe Kit adds a rear mounting position on tractors with standard roll bars so you can move your existing canopy over the backhoe seat. It is not compatible with angled roll bars.

Can I buy accessories later?

Yes. Shop canopy accessories separately or choose compatible add-ons above with your canopy. Confirm fit before ordering a Swap Kit or Backhoe Kit.

Choose your setup

Confirm your fit.
Choose your color.

Configure your canopy with the options above, or send us your model and roll bar measurements for guidance.
